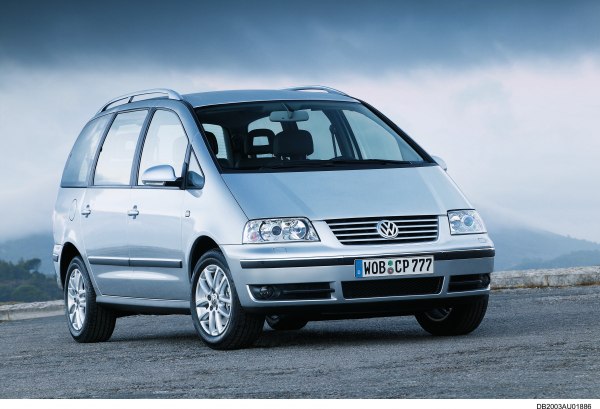

Volkswagen Geschwindigkeit

Sharan i (facelift 2004)

199.00 km/h

oder 123.65 mp/h

General information
BrandVolkswagen
Model Sharan
Generation Sharan I (facelift 2004)
Modification (Engine) 1.8 T (150 Hp)
Start of production 2004 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body typeMinivan, MPV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) - urban (NEDC) 13 l/100 km 18.09 US mpg21.73 UK mpg7.69 km/l
Fuel consumption (economy) - extra urban (NEDC) 7.4 l/100 km 31.79 US mpg38.17 UK mpg13.51 km/l
Fuel consumption (economy) - combined (NEDC) 9.4 l/100 km 25.02 US mpg30.05 UK mpg10.64 km/l
CO2 emissions (NEDC)225 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h10.9 sec
Acceleration 0 - 62 mph10.9 sec
Acceleration 0 - 60 mph 10.4 sec
Maximum speed 199 km/h 123.65 mph
Emission standard Euro 4
Weight-to-power ratio 11.3 kg/Hp, 88.4 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 129.6 Nm/tonne
Engine specs
Power 150 Hp @ 5800 rpm.
Power per litre 84.2 Hp/l
Torque 220 Nm @ 1800-4300 rpm. 162.26 lb.-ft. @ 1800-4300 rpm.
Engine location Front, Transverse
Engine Model/Code AWC
Engine displacement 1781 cm3 108.68 cu. in.
Number of cylinders 4
Position of cylinders Inline
Cylinder Bore 81 mm 3.19 in.
Piston Stroke 86.4 mm 3.4 in.
Compression ratio 9.5
Number of valves per cylinder 5
Fuel System Multi-point indirect injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l 4.23 US qt | 3.52 UK qt
Oil viscosity No Data
Engine oil specification
Coolant 6.3 l 6.66 US qt | 5.54 UK qt
Space, Volume and weights
Kerb Weight 1697 kg 3741.24 lbs.
Max. weight 2450 kg 5401.33 lbs.
Max load 753 kg 1660.08 lbs.
Trunk (boot) space - minimum 256 l 9.04 cu. ft.
Trunk (boot) space - maximum 2610 l 92.17 cu. ft.
Fuel tank capacity 70 l 18.49 US gal | 15.4 UK gal
Max. roof load 75 kg 165.35 lbs.
Permitted trailer load with brakes (12%) 1900 kg 4188.78 lbs.
Permitted trailer load without brakes 700 kg 1543.24 lbs.
Permitted towbar download 85 kg 187.39 lbs.
Dimensions
Length 4634 mm 182.44 in.
Width 1810 mm 71.26 in.
Width including mirrors 2142 mm 84.33 in.
Height 1730 mm 68.11 in.
Wheelbase 2835 mm 111.61 in.
Front track 1530 mm 60.24 in.
Rear (Back) track 1524 mm 60 in.
Minimum turning circle (turning diameter) 10.9 m 35.76 ft.
Approach angle 13.6°
Departure angle 14.6°
Ramp-over (brakeover) angle 13°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of Gears (manual transmission) 6
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Helical spring, Transverse stabilizer, Trailing arm
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/55 R16
Wheel rims size7J x 16
