| General information |
|---|

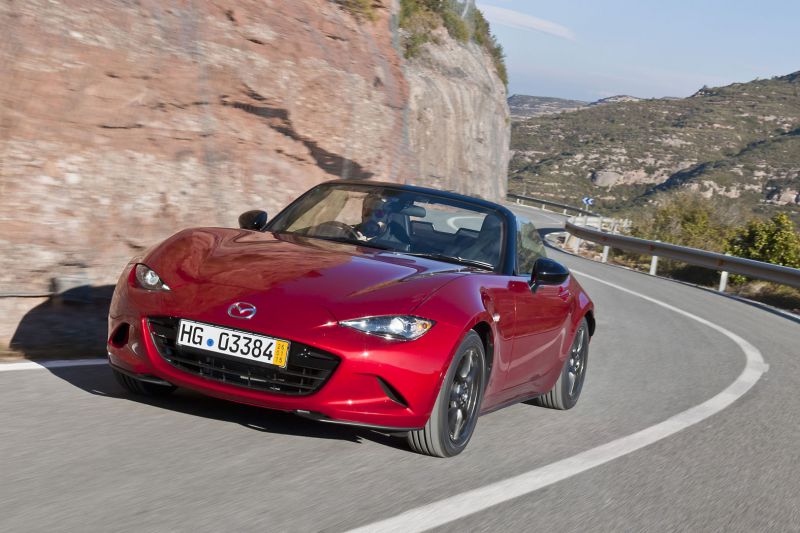

| Brand | Mazda |
|---|
| Model | MX-5 |
|---|
| Generation | MX-5 IV (ND2) |
|---|
| Modification (Engine) | 1.5 SkyActiv-G (131 Hp) |
|---|
| Start of production | September, 2015 year |
|---|
| End of production | August, 2018 year |
|---|
| Powertrain Architecture | Internal Combustion engine |
|---|
| Body type | Cabriolet |
|---|
| Seats | 2 |
|---|
| Doors | 2 |
|---|
| Performance specs |
|---|
| Fuel consumption (economy) - urban |
7.9 l/100 km
29.77 US mpg35.76 UK mpg12.66 km/l |
| Fuel consumption (economy) - extra urban |
4.9 l/100 km
48 US mpg57.65 UK mpg20.41 km/l |
| Fuel consumption (economy) - combined |
6 l/100 km
39.2 US mpg47.08 UK mpg16.67 km/l |
| CO2 emissions | 139 g/km |
|---|
| Fuel Type | Petrol (Gasoline) |
|---|
| Acceleration 0 - 100 km/h | 8.3 sec |
|---|
| Acceleration 0 - 62 mph | 8.3 sec |
|---|
| Acceleration 0 - 60 mph | 7.9 sec |
|---|
| Maximum speed |
204 km/h
126.76 mph |
| Emission standard | Euro 6 |
|---|
| Weight-to-power ratio | 7.4 kg/Hp, 134.4 Hp/tonne |
|---|
| Weight-to-torque ratio | 6.5 kg/Nm, 153.8 Nm/tonne |
|---|
| Engine specs |
|---|
| Power | 131 Hp @ 7000 rpm. |
|---|
| Power per litre | 87.6 Hp/l |
|---|
| Torque |
150 Nm @ 4800 rpm.
110.63 lb.-ft. @ 4800 rpm. |
| Engine location | Front, Longitudinal |
|---|
| Engine displacement |
1496 cm3
91.29 cu. in. |
| Number of cylinders | 4 |
|---|
| Position of cylinders | Inline |
|---|
| Cylinder Bore |
74.5 mm
2.93 in. |
| Piston Stroke |
85.8 mm
3.38 in. |
| Compression ratio | 13 |
|---|
| Number of valves per cylinder | 4 |
|---|
| Fuel System | Direct injection |
|---|
| Engine aspiration | Naturally aspirated engine |
|---|
| Valvetrain | DOHC |
|---|
| Engine oil capacity |
4.9 l
5.18 US qt | 4.31 UK qt |
| Oil viscosity | No Data |
| Engine oil specification |
| Coolant |
5.6-5.8 l
5.92 - 6.13 US qt | 4.93 - 5.1 UK qt |
|
|---|
| Space, Volume and weights |
|---|
| Kerb Weight |
975 kg
2149.51 lbs. |
| Max. weight |
1215 kg
2678.62 lbs. |
| Max load |
240 kg
529.11 lbs. |
| Trunk (boot) space - minimum |
130 l
4.59 cu. ft. |
| Fuel tank capacity |
45 l
11.89 US gal | 9.9 UK gal |
| Dimensions |
|---|
| Length |
3915 mm
154.13 in. |
| Width |
1735 mm
68.31 in. |
| Width including mirrors |
1918 mm
75.51 in. |
| Height |
1225 mm
48.23 in. |
| Wheelbase |
2310 mm
90.94 in. |
| Front track |
1495 mm
58.86 in. |
| Rear (Back) track |
1505 mm
59.25 in. |
| Ride height (ground clearance) |
125 mm
4.92 in. |
| Minimum turning circle (turning diameter) |
9.4 m
30.84 ft. |
| Drivetrain, brakes and suspension specs |
|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
|---|
| Drive wheel | Rear wheel drive |
|---|
| Number of Gears (manual transmission) | 6 |
|---|
| Front suspension | Double wishbone |
|---|
| Rear suspension | Independent, spring multi-link with stabilizer |
|---|
| Front brakes | Ventilated discs |
|---|
| Rear brakes | Disc |
|---|
| Assisting systems | ABS (Anti-lock braking system) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Power steering | Electric Steering |
|---|
|
|---|
