BMW Geschwindigkeit

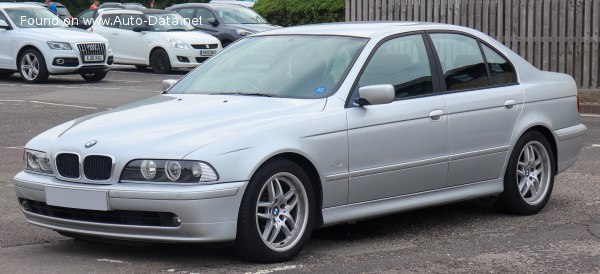

5 series (e39, facelift 2000)

206.00 km/h

oder 128.00 mp/h

General information
BrandBMW
Model 5 Series
Generation 5 Series (E39, Facelift 2000)
Modification (Engine) 520d (136 Hp)
Start of production 2000 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body typeSedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) - urban 7.8 l/100 km 30.16 US mpg36.22 UK mpg12.82 km/l
Fuel consumption (economy) - extra urban 4.6 l/100 km 51.13 US mpg61.41 UK mpg21.74 km/l
Fuel consumption (economy) - combined 5.9 l/100 km 39.87 US mpg47.88 UK mpg16.95 km/l
Fuel Type Diesel
Acceleration 0 - 100 km/h10.6 sec
Acceleration 0 - 62 mph10.6 sec
Acceleration 0 - 60 mph 10.1 sec
Maximum speed 206 km/h 128 mph
Weight-to-power ratio 11 kg/Hp, 91.3 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 187.9 Nm/tonne
Engine specs
Power 136 Hp @ 4000 rpm.
Power per litre 69.7 Hp/l
Torque 280 Nm @ 1750 rpm. 206.52 lb.-ft. @ 1750 rpm.
Engine location Front, Longitudinal
Engine Model/Code M47D20
Engine displacement 1951 cm3 119.06 cu. in.
Number of cylinders 4
Position of cylinders Inline
Cylinder Bore 84 mm 3.31 in.
Piston Stroke 88 mm 3.46 in.
Compression ratio 19
Number of valves per cylinder 4
Fuel System Diesel Commonrail
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 6 l 6.34 US qt | 5.28 UK qt
Oil viscosity No Data
Engine oil specification
Coolant 8.4 l 8.88 US qt | 7.39 UK qt
Space, Volume and weights
Kerb Weight 1490 kg 3284.89 lbs.
Max. weight 2000 kg 4409.25 lbs.
Max load 510 kg 1124.36 lbs.
Trunk (boot) space - minimum 460 l 16.24 cu. ft.
Fuel tank capacity 70 l 18.49 US gal | 15.4 UK gal
Dimensions
Length 4775 mm 187.99 in.
Width 1800 mm 70.87 in.
Height 1435 mm 56.5 in.
Wheelbase 2830 mm 111.42 in.
Front track 1516 mm 59.69 in.
Rear (Back) track 1530 mm 60.24 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of Gears (manual transmission) 5
Front suspension Wishbone
Rear suspension Several levers and rods
Front brakesVentilated discs
Rear brakesDisc
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/65 R15
Wheel rims size15
